Slim Multi Color [Amber+White+Blue+Red] Surface Mount & Grille Emergency Strobe Light Head (STU-SM-AWBR)
Slim Multi Color [Amber+White+Blue+Red] Surface Mount & Grille Emergency Strobe Light Head (STU-SM-AWBR)
SKU:STU-SM-AWBR
Low stock: 4 left
Share

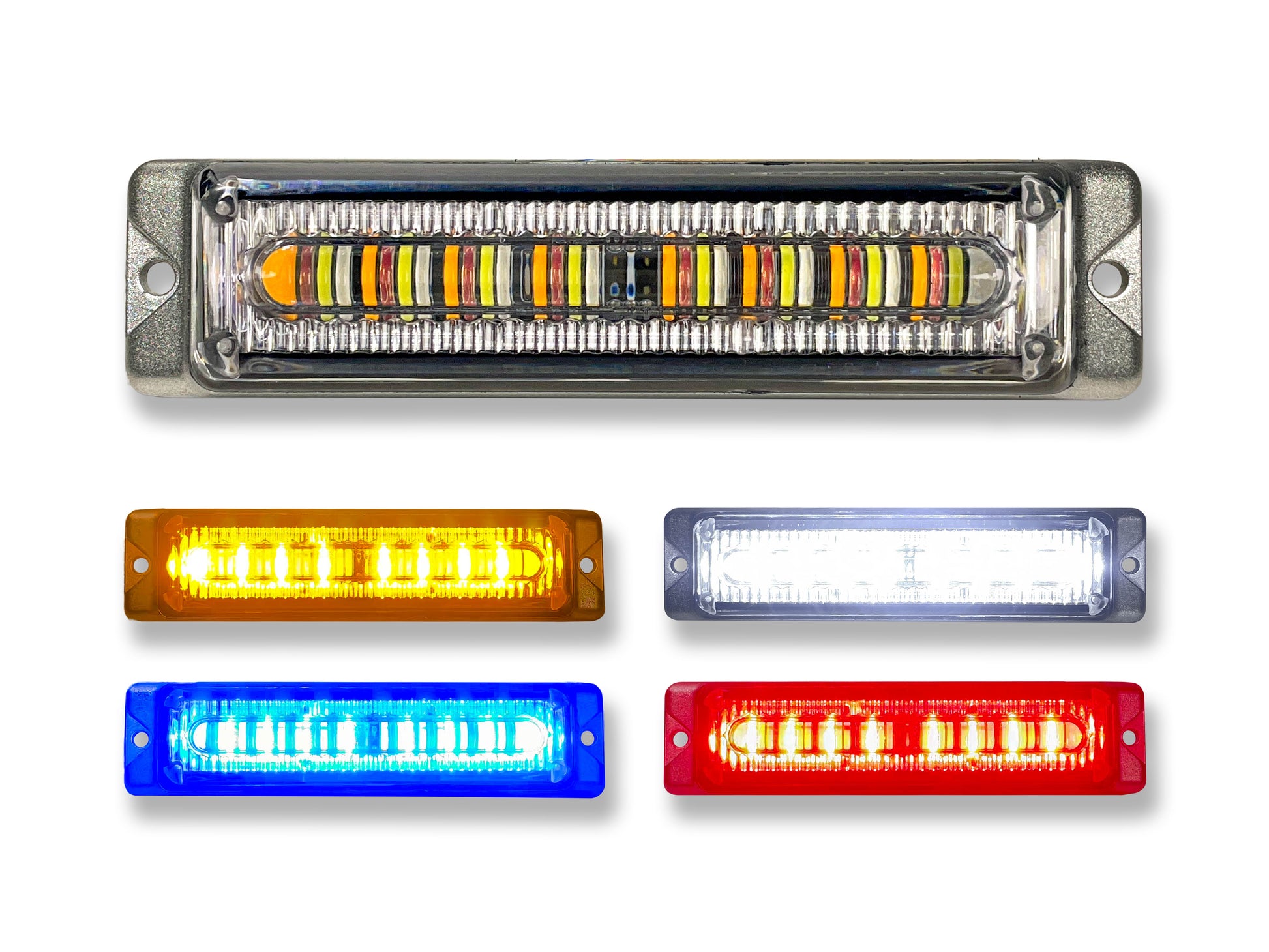

This powerful and Slim Surface Mount LED warning strobe light boasts 32 individual high-power 3W LED emitters (in the form of 16 dual color LED diodes). Each color (Amber, White, Blue, and Red) has 8pcs 3W high-power LED diodes for a combined 96 Watts of warning power (DISCLAIMER: There is no setting where all 32 LEDs will be on at the same time, the average current draw of the unit is around 1.5 amps or around 18 Watts).
This strobe contains 31 popular eye-catching flash patterns, 15 color combinations in Single, Dual, Trio, and Quad Color for all 31 flash patterns, and 3 different programmable modes with their own trigger wires. Mode 3 (green wire) will override Mode 2 (blue wire), and Mode 2 (blue wire) will override Mode 1 (red wire). The yellow wire has three functions: a single tap to 12V+ will change the flash pattern of the current mode (wire color); a triple tap to 12V+ will change the color combination; tying the yellow wire of multiple units will synchronize the unit’s flash patterns. Connect the white wire to 12V+ to alternate the unit in question.
Mode 3 (green wire) will override Mode 2 (blue wire), and Mode 2 (blue wire) will override Mode 1 (red wire). The yellow wire has three functions: a single tap to 12V+ will change the flash pattern of the current mode (wire color); a triple tap to 12V+ will change the color combination; tying the yellow wire of multiple units will synchronize the unit’s flash patterns. Connect the white wire to 12V+ to alternate the unit in question.

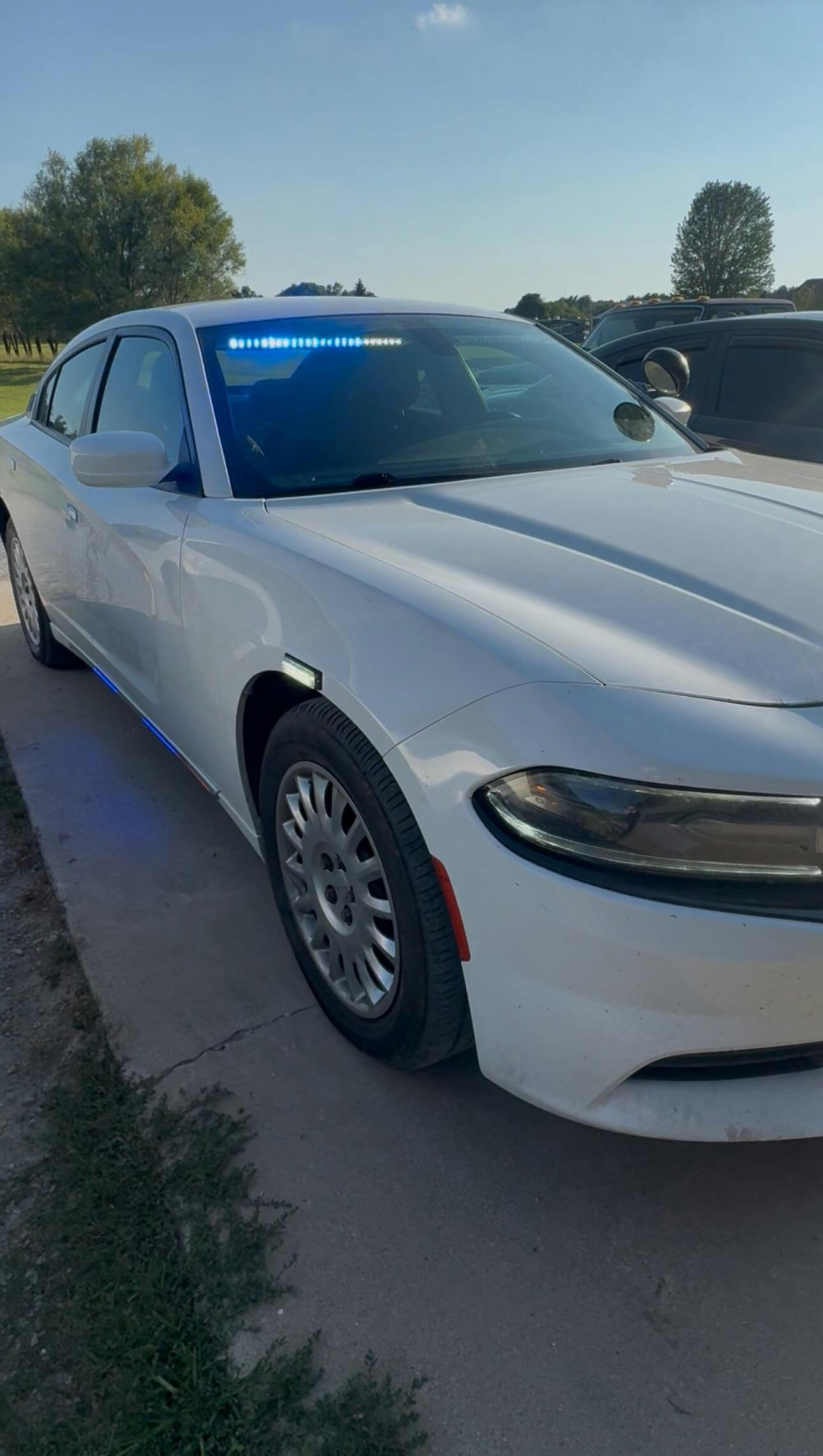

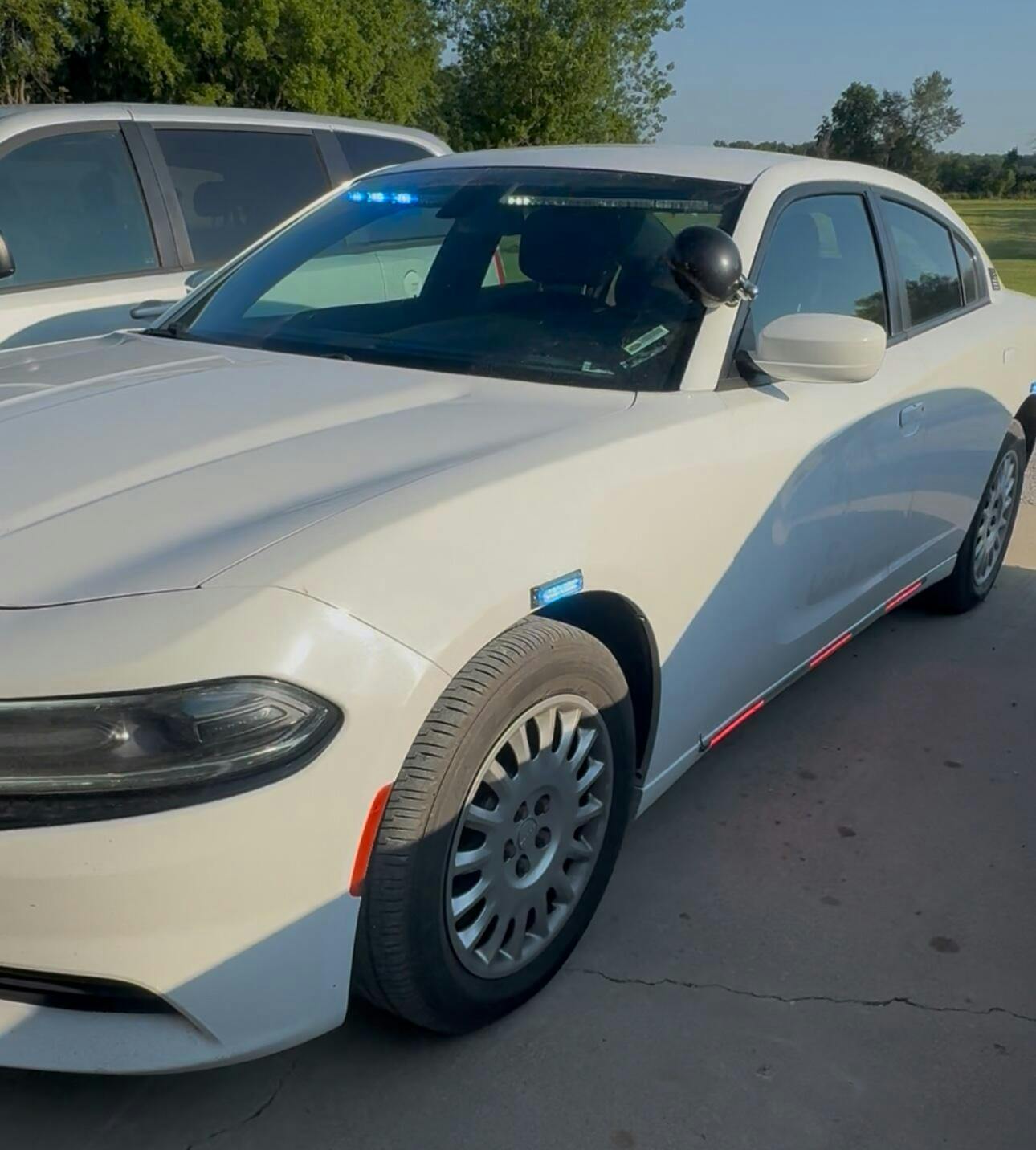

These things are amazing. I have 6 set up as chase lights, brake lights and signal lights.
